Creating an Oracle AI Database 26ai using the Database Configuration Assistant (DBCA) is the final and most satisfying step after completing Grid Infrastructure and Database Home installation. This stage turns your infrastructure into a fully functional, production-ready database.
In this guide, we walk through Oracle AI Database 26ai database creation using DBCA, based on a real-world setup with ASM, Oracle Restart, and best-practice defaults. The goal is not just to click Next, but to understand why each option matters.
This article is written for DBAs who want a clear, practical, and human-friendly DBCA walkthrough.
Prerequisites Before Running DBCA
Before starting DBCA, ensure the following are already in place:
- Oracle Grid Infrastructure 26ai Restart installed and running
- ASM disk group (DATA) mounted and healthy
- Oracle Database 26ai software installed
- Listener running from Grid/DB home
- OS users and groups configured correctly
You can quickly validate with:
crsctl check has
asmcmd lsdg
lsnrctl statusLaunching DBCA
Switch to the oracle user and launch DBCA from the Database Home:
cd $ORACLE_HOME/bin
dbcaThe Database Configuration Assistant wizard opens, guiding you through the database creation process.
(Screenshot placeholder: DBCA welcome / Database Operation)

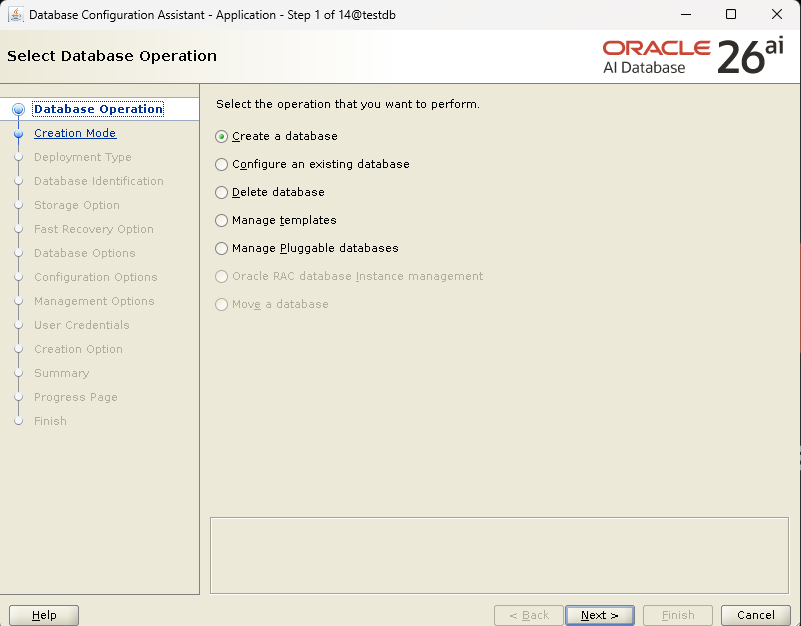

Step 1: Select Database Operation
Choose:
✅ Create a database
This option initializes a brand-new Oracle AI Database instance.

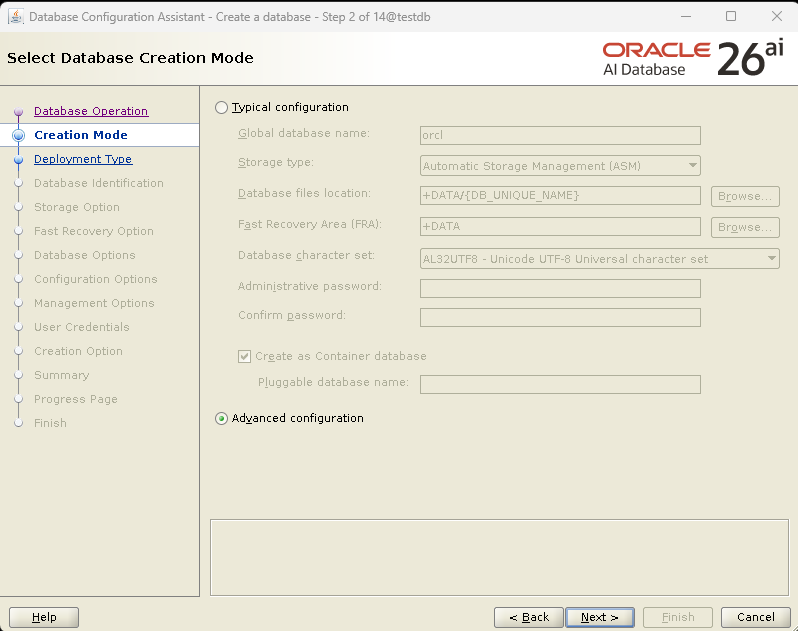

Step 2: Select Database Creation Mode
Choose:
✅ Advanced configuration
Although DBCA offers a Typical configuration, advanced mode provides full control over:
- Memory
- Storage
- Character set
- PDB configuration
- Security options
This is the recommended choice for DBAs.
Step 3: Select Database Deployment Type
Select:
- Database type: Oracle Single Instance database
- Template: General Purpose or Transaction Processing
The General Purpose template provides a balanced configuration suitable for most workloads.

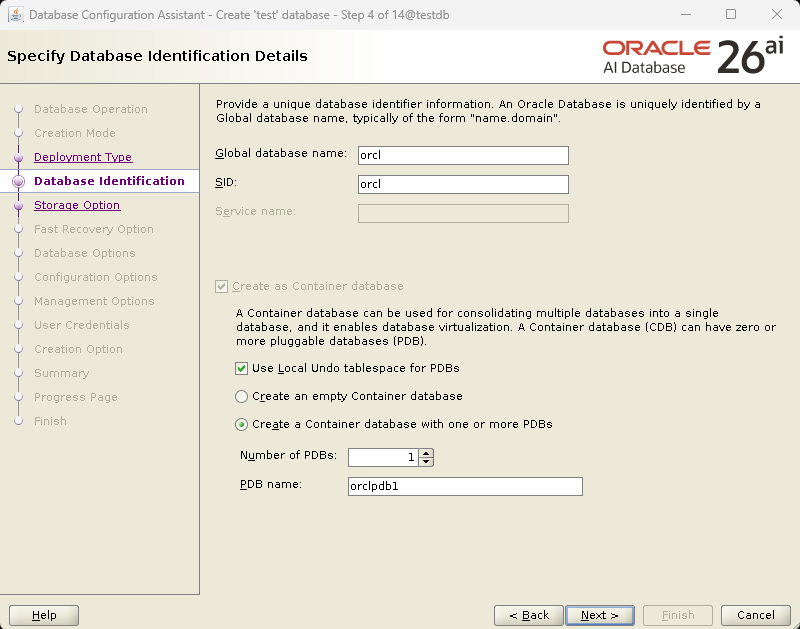

Step 4: Specify Database Identification
In this step, define the database identity:
- Global database name:
orcl - SID:
orcl
Enable container database:
✅ Create as Container database (CDB)
PDB settings:
- Number of PDBs: 1
- PDB name:
orclpdb1 - ✅ Use local undo tablespace for PDBs
This aligns with Oracle’s multitenant architecture, which is mandatory for modern Oracle releases.

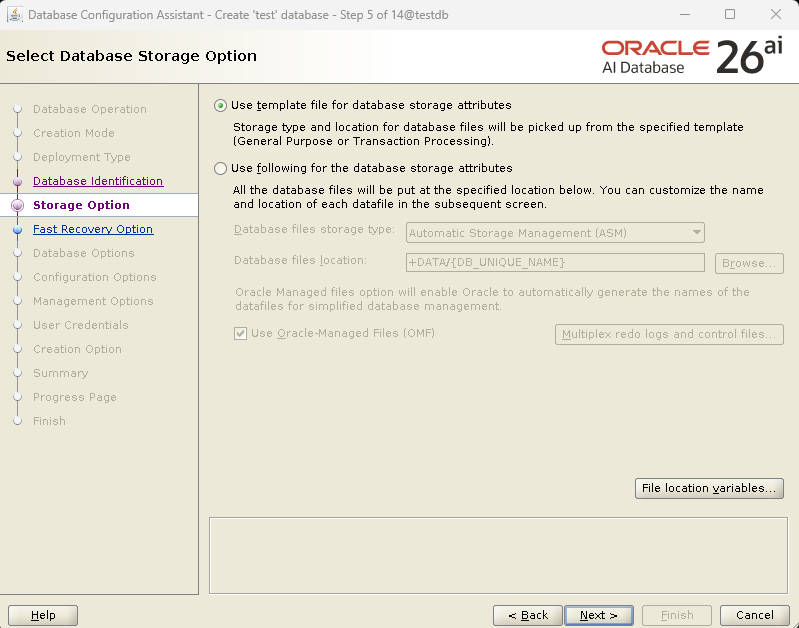

Step 5: Select Database Storage Option
Choose:
✅ Use template file for database storage attributes
Storage configuration:
- Storage type: Automatic Storage Management (ASM)
- Database files location:
+DATA/{DB_UNIQUE_NAME} - ✅ Use Oracle Managed Files (OMF)
Using ASM with OMF simplifies file management and improves reliability.

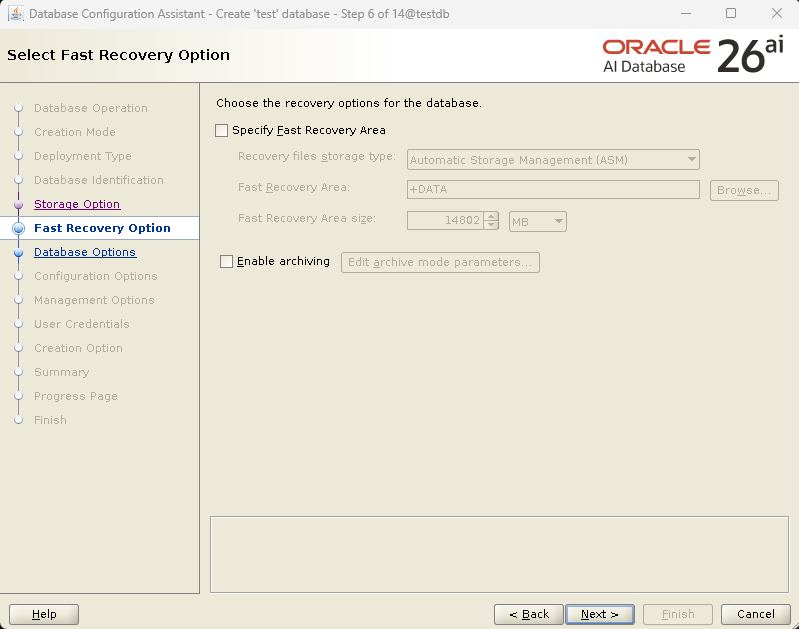

Step 6: Select Fast Recovery Option
In this setup:
- Fast Recovery Area (FRA) is not configured initially
- Archive logging is disabled at creation time
This is common for test or initial deployments. For production systems, FRA and archiving should be enabled later.

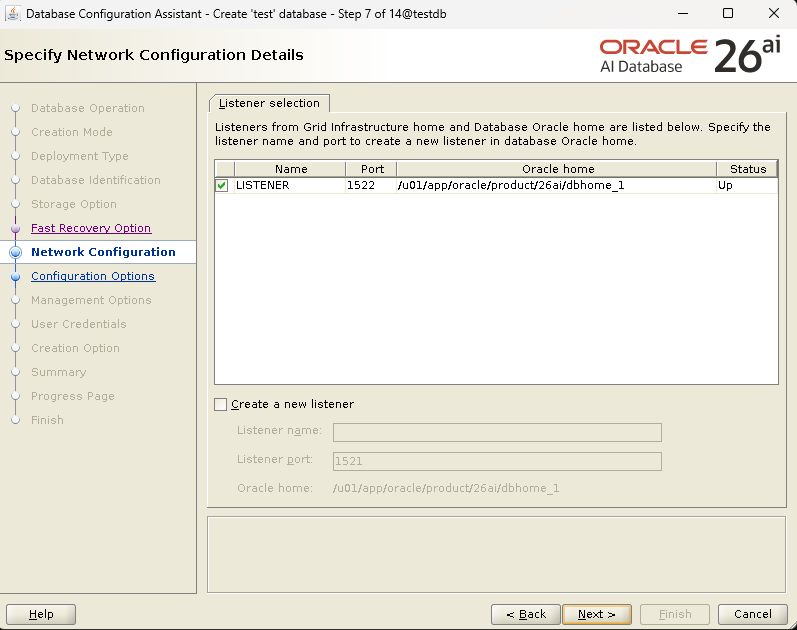

Step 7: Specify Network Configuration
DBCA detects the existing listener created during Grid/DB installation.
Listener details:
- Listener name: LISTENER
- Port: 1522
- Status: Up
No new listener is required.

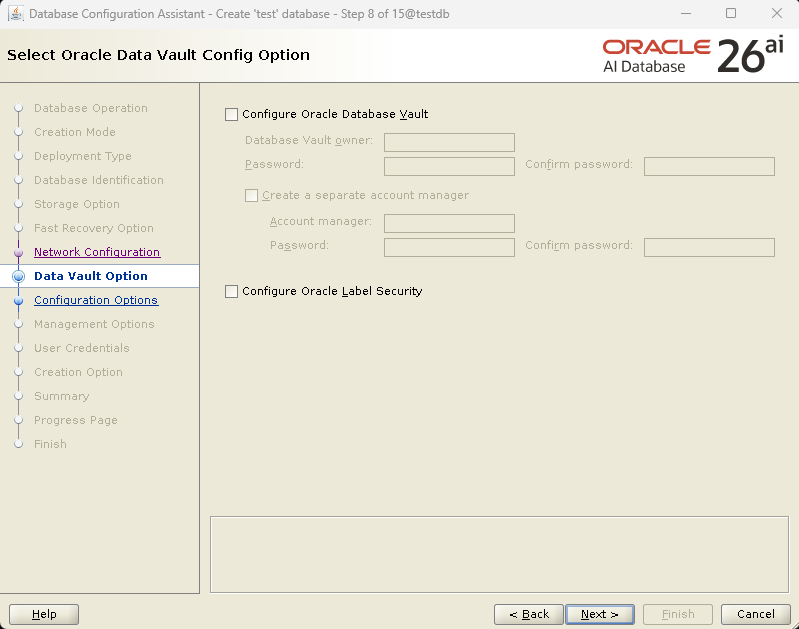

Step 8: Oracle Data Vault Option
Leave the following unchecked:
- Configure Oracle Database Vault
- Configure Oracle Label Security
These advanced security features can be enabled later if required.

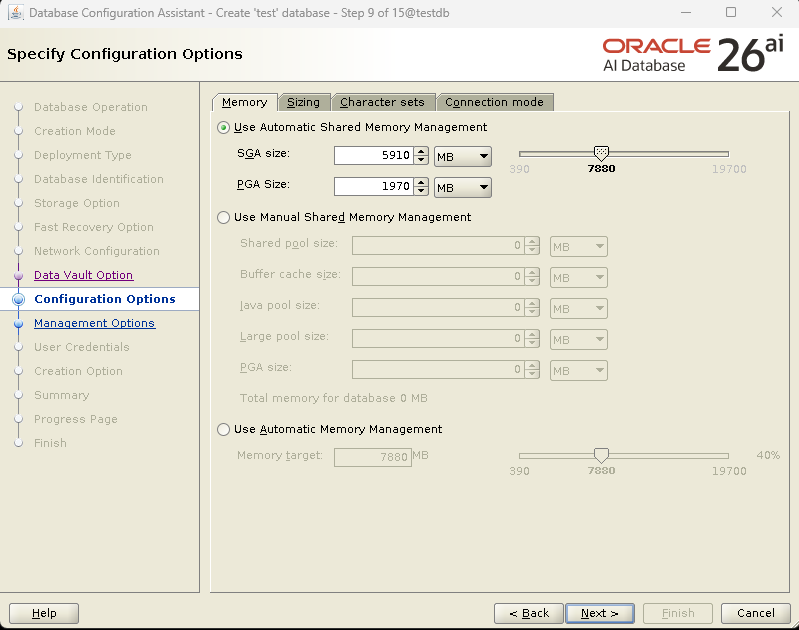

Step 9: Specify Configuration Options (Memory)
Memory configuration:
✅ Use Automatic Shared Memory Management (ASMM)
Example values:
- SGA: ~5.9 GB
- PGA: ~1.9 GB
DBCA dynamically adjusts memory based on system capacity. This approach balances performance and simplicity.

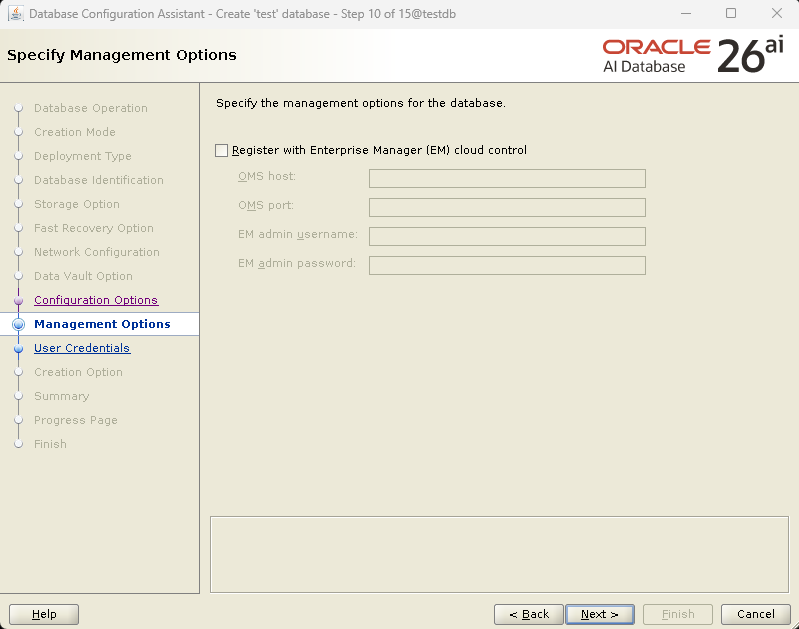

Step 10: Management Options
In the Management Options screen, DBCA allows you to register the database with Enterprise Manager (EM) Cloud Control.
In this setup:
- ❌ Register with Enterprise Manager (EM) Cloud Control is left unchecked
This is a common and recommended approach for many environments. Most DBAs prefer to complete the database creation first and register the database with OEM later using the agent.

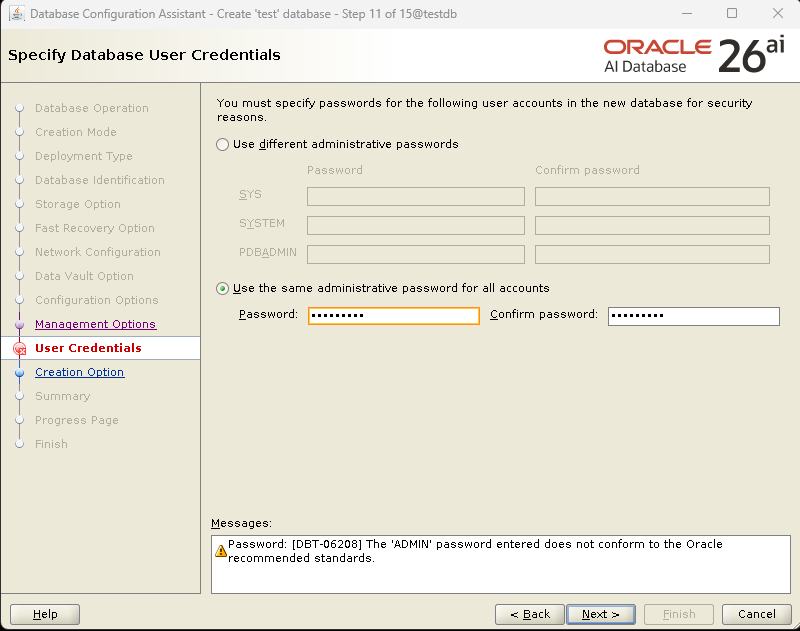

Step 11: Specify Database User Credentials
DBCA now prompts for passwords for administrative database accounts.
Accounts created:
- SYS – Primary database administrator
- SYSTEM – Secondary administrative user
- PDBADMIN – Administrator for the pluggable database
In this example:
- ✅ Use the same administrative password for all accounts
You may see a warning such as:
The ADMIN password entered does not conform to Oracle recommended standards
This is a warning only and does not block database creation.
👉 Best Practice: For production systems, always use strong passwords that meet Oracle complexity requirements.

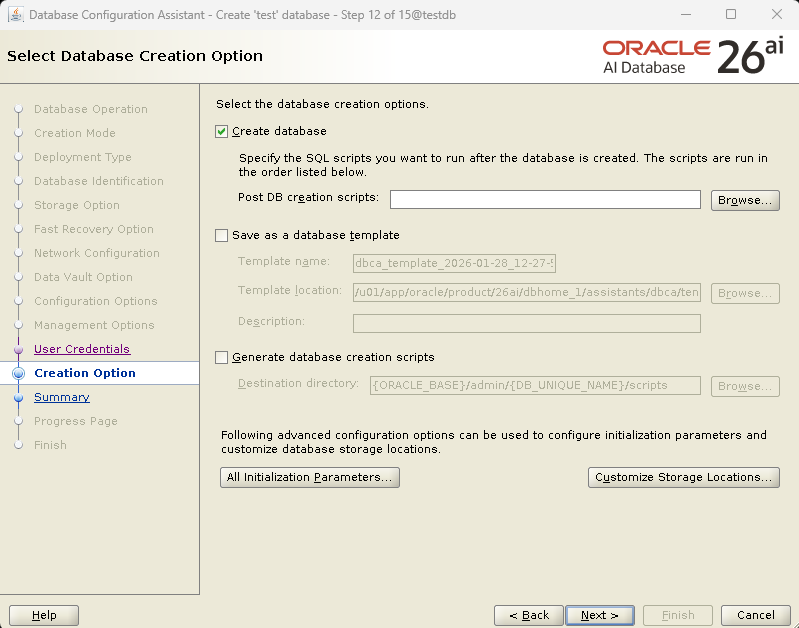

Step 12: Select Database Creation Option
On the Database Creation Option screen:
- ✅ Create database
- ❌ Save as a database template (optional)
- ❌ Generate database creation scripts (optional)
Advanced options such as initialization parameters and custom storage locations can be accessed here if required.
For most environments, the default selection is sufficient.
Step 13: Summary Review Before Creation
The Summary screen provides a complete overview of the database configuration, including:
- Global database name and SID
- Oracle Single Instance deployment type
- Container database with one PDB
- ASM storage using +DATA disk group
- Memory configuration (ASMM)
- Initialization parameters
👉 Important DBA Tip: Always review this screen carefully. Any mistake here will require recreating the database.
Click Finish to start database creation.
Database Creation Progress
DBCA now performs the following operations:
- Creates datafiles, control files, and redo logs in ASM
- Builds the data dictionary
- Configures CDB and PDB
- Registers the database with Oracle Restart
- Starts the database and listener services
Progress can be monitored in real time on the Progress Page.
Finish – Oracle AI Database 26ai Created Successfully
Once all steps complete, DBCA displays the Finish screen with the confirmation message:
The configuration of Oracle AI Database was successful.
This confirms that your Oracle AI Database 26ai has been created, configured, and started successfully.
Database Creation Progress and Completion
The progress page shows real-time creation steps. Once completed, DBCA confirms successful database creation.
At this point, your Oracle AI Database 26ai is fully operational.
Post-Creation Validation (Oracle Restart & DB Status)
After DBCA completes successfully, it is important to verify that Oracle Restart, ASM, listener, database, and PDB resources are correctly registered and running.
Run the following command as the oracle user:
crsctl stat res -tSample Output Explained
--------------------------------------------------------------------------------
Name Target State Server State details
--------------------------------------------------------------------------------
Local Resources
--------------------------------------------------------------------------------
ora.DATA.dg
ONLINE ONLINE testdb STABLE
ora.LISTENER.lsnr
ONLINE ONLINE testdb STABLE
ora.asm
ONLINE ONLINE testdb Started,STABLE
ora.ons
OFFLINE OFFLINE testdb STABLE
--------------------------------------------------------------------------------
Cluster Resources
--------------------------------------------------------------------------------
ora.cssd
1 ONLINE ONLINE testdb STABLE
ora.diskmon
1 OFFLINE OFFLINE STABLE
ora.evmd
1 ONLINE ONLINE testdb STABLE
ora.orcl.db
1 ONLINE ONLINE testdb Open,HOME=/u01/app/o
racle/product/26ai/d
bhome_1,STABLE
ora.orcl.orclpdb.pdb
1 ONLINE ONLINE testdb READ WRITE,STABLE
--------------------------------------------------------------------------------
What this means:
- ora.DATA.dg – ASM disk group is mounted and healthy
- ora.LISTENER.lsnr – Listener is up and managed by Oracle Restart
- ora.asm – ASM instance is running normally
- ora.ons – Oracle Notification Service is offline (expected for single-node Restart setups)
Key confirmations:
- ora.cssd – Cluster Synchronization Service is running (required even for Restart)
- ora.evmd – Event Manager daemon is online
- ora.orcl.db – Database is OPEN and managed by Oracle Restart
- ora.orcl.orclpdb.pdb – Pluggable database is OPEN in READ WRITE mode
DBA Validation Checklist
✔ ASM disk group ONLINE ✔ Listener ONLINE ✔ Database OPEN ✔ PDB READ WRITE ✔ All resources STABLE
This confirms that:
- Oracle Restart is functioning correctly
- The database will auto-start on server reboot
- The environment is production-ready

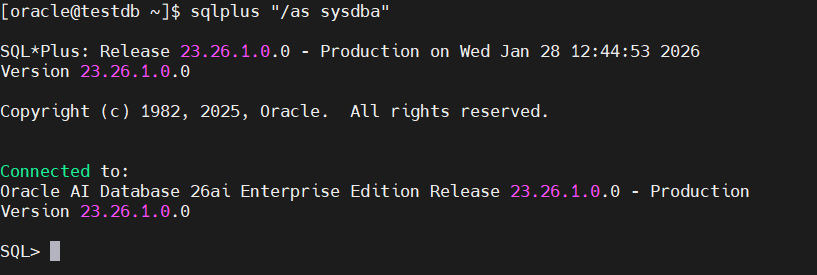

Verify database status:
sqlplus / as sysdba
SQL> select name, open_mode from v$database;
NAME OPEN_MODE
--------- --------------------
ORCL READ WRITE
SQL> show pdbs;
CON_ID CON_NAME OPEN MODE RESTRICTED
---------- ------------------------------ ---------- ----------
2 PDB$SEED READ ONLY NO
3 ORCLPDB READ WRITE NO
Ensure:
- Database is OPEN
- PDB is OPEN in READ WRITE mode
Final Thoughts
Creating an Oracle AI Database 26ai using DBCA is a structured, reliable process when combined with:
- Oracle Grid Infrastructure Restart
- ASM storage
- Proper OS and memory configuration
By following this approach, you get a clean, supportable, and production-ready Oracle AI Database environment.
