How to Fix DBCA Error [DBT-10317] Specified SID Name Already Exists in Oracle 19c

When creating a new database using the Database Configuration Assistant (DBCA) in Oracle Corporation Oracle Database 19c, one of the most common (and frustrating) errors DBAs encounter is:

[DBT-10317] Specified SID Name (<SID>) already exists
Sometimes accompanied by:
[DBT-10328] Specified GDB Name may have a potential conflict

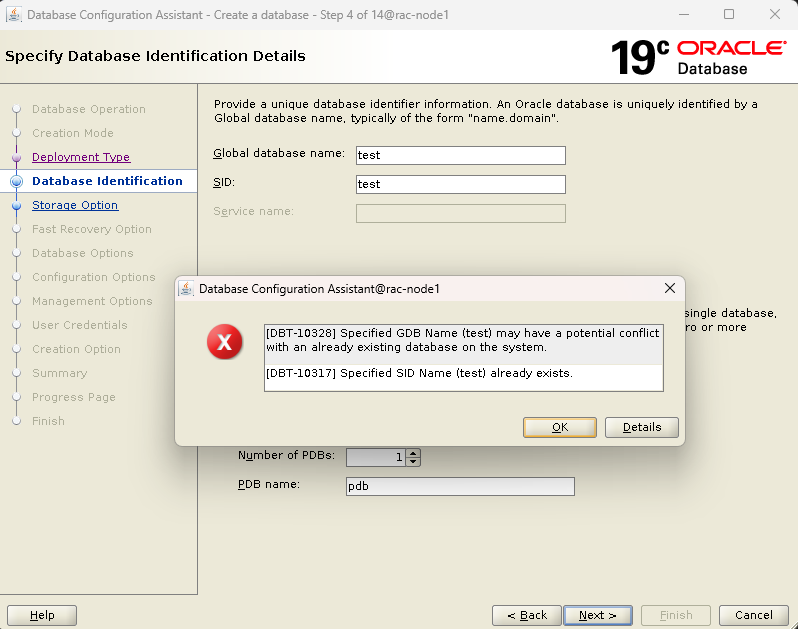

This error usually appears during the “Specify Database Identification Details” step, even when you’re sure the database doesn’t exist. The good news? This issue is well-understood, easy to diagnose, and fully recoverable.

In this guide, we’ll break down why this error occurs, what DBCA is actually checking behind the scenes, and step-by-step solutions to fix it—whether you’re on Linux, UNIX, Windows, or a RAC cluster.

---

What Does DBCA Error DBT-10317 Mean?

DBCA enforces uniqueness when creating a database. The SID (System Identifier) must not conflict with any existing or previously registered database resources on the system.

When DBCA raises DBT-10317, it means:

DBCA found the same SID already registered, running, or partially configured somewhere on the system.

Even if the database files are gone, leftover metadata can still trigger this error.

---

Common Causes of “Specified SID Name Already Exists”

DBCA checks several locations before allowing a new database to be created. The error occurs if the SID is found in any of the following:

1. SID Exists in /etc/oratab

2. An Oracle instance with the same SID is still running

3. The database is registered in Oracle Clusterware (RAC)

4. On Windows, an Oracle service already exists with the same SID

Let’s go through each cause and its solution.

---

Solution 1: Remove the SID from /etc/oratab

Why this happens

The /etc/oratab file tracks databases known to the Oracle installation. Sometimes:

• A database was deleted manually
• DBCA failed midway
• Files were removed, but /etc/oratab wasn’t cleaned

DBCA sees the SID here and assumes the database already exists.

How to fix it

1. Open the oratab file:

vi /etc/oratab

2. Look for an entry like:

test:/u01/app/oracle/product/19c/dbhome_1:Y

3. If the database truly does not exist, delete that line
4. Save and exit

✅ Retry DBCA — in many cases, this alone resolves the error.

---

Solution 2: Check if the Instance Is Still Running (PMON Exists)

Why this happens

If an Oracle instance with the same SID is running (or partially running), DBCA will block reuse of that SID.

DBCA specifically checks for the PMON background process:

ora_pmon_<SID>

How to detect it

Run:

ps -ef | grep ora_pmon_<SID>

Example:

ps -ef | grep ora_pmon_test

If you see output (other than the grep command itself), the instance is still running.

---

How to stop the instance safely

If this instance should not be running, terminate it:

1. Identify the PMON OS process ID (PID)
2. Kill the process:

kill -KILL <PMON_PID>

This action:

• Terminates PMON
• Forces the Oracle instance to shut down within moments

⚠️ Important: Only do this if you are sure the instance is not required.

After stopping PMON, retry DBCA using the same SID.

---

Solution 3: Database Registered in Oracle Clusterware (RAC)

Why this happens

In Oracle RAC or Grid Infrastructure environments, DBCA also checks cluster metadata.

Even if:

• Database files were deleted
• Instances are down

…the database may still be registered in the cluster.

How to check registered databases

Run:

srvctl config database

If your SID or DB name appears here, DBCA will not allow reuse.

---

How to remove the database from the cluster

If the database is no longer needed:

srvctl remove database -db <db_unique_name>

Confirm removal when prompted.

✅ Once removed, DBCA will allow the SID to be reused.

---

Solution 4: Windows Platform – Oracle Service Already Exists

Why this happens

On Windows systems, each database SID creates a Windows service like:

OracleService<SID>

If this service still exists (even if stopped), DBCA considers the SID as “already in use”.

---

How to fix it

1. Open Services
2. Look for:

OracleService<SID>

3. If found:
   • Stop the service
   • Optionally remove the database using DBCA

Alternatively:

• Keep the existing database
• Create a new one using a different SID

---

Why DBCA Is So Strict About SID Conflicts

This behavior is intentional and protective.

Oracle enforces SID uniqueness to prevent:

• Control file corruption
• ORACLE_SID environment conflicts
• Cluster resource inconsistencies
• Accidental overwriting of databases

Even partial remnants are treated as valid conflicts.

---

Best Practices to Avoid DBT-10317 in the Future

✔ Always delete databases using DBCA, not manual file removal
✔ Clean /etc/oratab after failed DB creation attempts
✔ Verify PMON processes before reusing a SID
✔ In RAC, always remove databases with srvctl
✔ Use unique, meaningful SIDs for test and production environments

---

Final Checklist Before Retrying DBCA

Before clicking Next in DBCA, confirm:

• ❌ No <SID> entry in /etc/oratab
• ❌ No ora_pmon_<SID> process running
• ❌ No cluster registration via srvctl
• ❌ No Windows Oracle service with same SID

If all checks are clear, DBCA will proceed without errors.

---

Conclusion

The DBCA error [DBT-10317] Specified SID Name already exists is not a bug—it’s a safeguard. While it can be confusing at first, the root cause is always one of a few well-defined conditions.

By methodically checking:

• /etc/oratab
• Running PMON processes
• Cluster registrations
• Windows services

…you can resolve the issue quickly and confidently.

Once cleaned up, retry DBCA, and your database creation should complete successfully—no more SID conflicts.
