ORA-04030: Out of Process Memory in PGA – Oracle Memory Troubleshooting Guide

ORA-04030: Out of Process Memory in PGA is one of the most frequent Oracle memory-related errors DBAs face during high-load operations.

You might see it when running a big query, an RMAN backup, or during parallel jobs. The error looks like this:

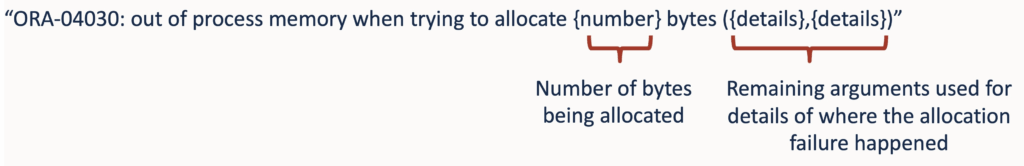

ORA-04030: out of process memory when trying to allocate <bytes> bytes (<alloc type 1>, <alloc type 2>)

It means Oracle tried to allocate memory for a session process from the PGA (Program Global Area) — but the system couldn’t provide enough contiguous memory space.

Let’s look at what this error means, why it happens, and how to fix it step by step.

---

What Is ORA-04030?

ORA-04030 means a process (like a user session, query, or RMAN backup) tried to allocate memory from the PGA, but the operating system or Oracle couldn’t provide enough contiguous space.

In simpler terms:

Oracle tried to get more working memory for a process, but the system was already too full.

---

PGA vs. SGA: Quick Refresher

Before fixing it, it’s important to understand where the problem lives.

Area	Purpose	Typical Issues
SGA (System Global Area)	Shared memory for caching, buffer pool, library cache	ORA-04031 (shared memory)
PGA (Program Global Area)	Memory used by each individual process	ORA-04030 (process memory)

PGA handles:

• Sorts
• Hash joins
• Bitmap merges
• Session memory
• RMAN compression and data loading

---

Common Causes of ORA-04030

1. Insufficient PGA allocation (pga_aggregate_target too low)
2. Automatic Memory Management (AMM) misconfigured
3. OS-level memory limits (ulimit or virtual memory
4. Unoptimized SQL or parallel operations consuming large memory
5. Third-party agents or background processes overusing memory
6. Memory fragmentation or runaway sessions

---

Step-by-Step Troubleshooting Guide

---

Step 1: Check Alert Log and Error Details

Check your database alert log for ORA-04030 occurrences:

tail -50 $ORACLE_BASE/diag/rdbms/orcl/orcl/trace/alert_orcl.log

You’ll see something like:

ORA-04030: out of process memory when trying to allocate 2048 bytes (pga heap, kxs-heap-c)

Note the process type and allocation type — they tell you which operation ran out of memory.

---

Step 2: Check Current PGA and SGA Settings

Run:

SHOW PARAMETER pga_aggregate_target;
SHOW PARAMETER sga_target;
SHOW PARAMETER memory_target;

If you’re using AMM (with memory_target), Oracle automatically balances PGA and SGA — but may undersize one side during high load.

✅ Recommended Fix:

• Use Automatic PGA Management (set pga_aggregate_target manually).
• Disable AMM if memory demands are high and predictable.

---

Step 3: Monitor PGA Usage

Check how much PGA memory is currently being used:

SELECT round(pga_used_mem/1024/1024) AS used_mb,
       round(pga_alloc_mem/1024/1024) AS allocated_mb,
       round(pga_freeable_mem/1024/1024) AS freeable_mb,
       round(total_pga_inuse/1024/1024) AS total_inuse_mb
FROM v$process_memory;

You can also use:

SELECT * FROM v$pgastat;

Look at:

• aggregate PGA target parameter
• total PGA allocated
• total PGA inuse
• over allocation count

If over allocation count > 0, PGA is undersized.

---

Step 4: Increase PGA Allocation

Increase pga_aggregate_target gradually:

ALTER SYSTEM SET pga_aggregate_target = 2G SCOPE=BOTH;

For large servers (64GB+ RAM), a good starting point is:

PGA ≈ 20% of total physical memory

If you use parallelism or memory-intensive queries, increase further.

---

Step 5: Check OS Memory Limits

On Linux:

ulimit -a | grep memory

Make sure:

• max memory size and virtual memory are not too restrictive.
  Adjust in /etc/security/limits.conf if necessary.

---

Step 6: Identify Memory-Heavy Sessions

Find which sessions are consuming excessive PGA:

SELECT s.sid, s.serial#, p.pid, p.spid, pga_used_mem/1024/1024 AS pga_mb,
       s.username, s.program
FROM v$process p, v$session s
WHERE p.addr = s.paddr
ORDER BY pga_mb DESC FETCH FIRST 10 ROWS ONLY;

If a single query or process uses hundreds of MBs, investigate and tune it.

---

Step 7: Tune Memory-Intensive SQL

Queries with sorts, hash joins, or Cartesian products consume large PGA.
Generate an AWR report and check top SQLs by memory usage:

@$ORACLE_HOME/rdbms/admin/awrrpt.sql

Look for:

• “workarea executions – optimal/one-pass/multi-pass” stats.
  If most are multi-pass, your PGA is too small.

✅ Use:

ALTER SYSTEM SET workarea_size_policy = AUTO;

---

Step 8: Restart and Validate

After increasing PGA or fixing SQL, monitor:

SELECT * FROM v$pgastat WHERE name='over allocation count';

If it stays 0, the issue is resolved.

---

Real-World Example

A retail company’s overnight ETL job started failing with:

ORA-04030: out of process memory when trying to allocate 524288 bytes (pga heap, kgh stack)

Investigation showed their pga_aggregate_target was only 512 MB — insufficient for 16 parallel jobs.

✅ Fix:

ALTER SYSTEM SET pga_aggregate_target=3G SCOPE=BOTH;

After tuning, jobs ran 50% faster, and no memory errors reappeared.

---

Best Practices to Prevent ORA-04030

1. Allocate adequate PGA – at least 10–20% of total RAM.
2. Use workarea_size_policy=AUTO for dynamic optimization.
3. Monitor PGA regularly via AWR or custom scripts.
4. Avoid unbounded sorts and joins in SQL.
5. Use parallelism carefully – each worker gets its own PGA.
6. Set OS memory limits high enough for Oracle processes.
7. Consider enabling hugepages on Linux for better memory handling.

---

Related Articles

• How to Fix Broken Data Guard Log Shipping (Step-by-Step Oracle DBA Guide)
• ORA-04063 and ORA-00904 on “SYS.DBA_REGISTRY” Has Errors
• ORA-04031: Unable to Allocate Shared Memory – Causes, Fixes, and Prevention (Oracle DBA Guide)

---

Final Thoughts

The ORA-04030: Out of Process Memory error is not a sign of Oracle failure — it’s a memory configuration issue that’s easy to fix once you understand the balance between PGA, SGA, and OS memory.

By proactively monitoring PGA usage and tuning SQL operations, you can ensure optimal performance and stability — even during peak workloads.
